APPLICATIONS
Established tread pattern design

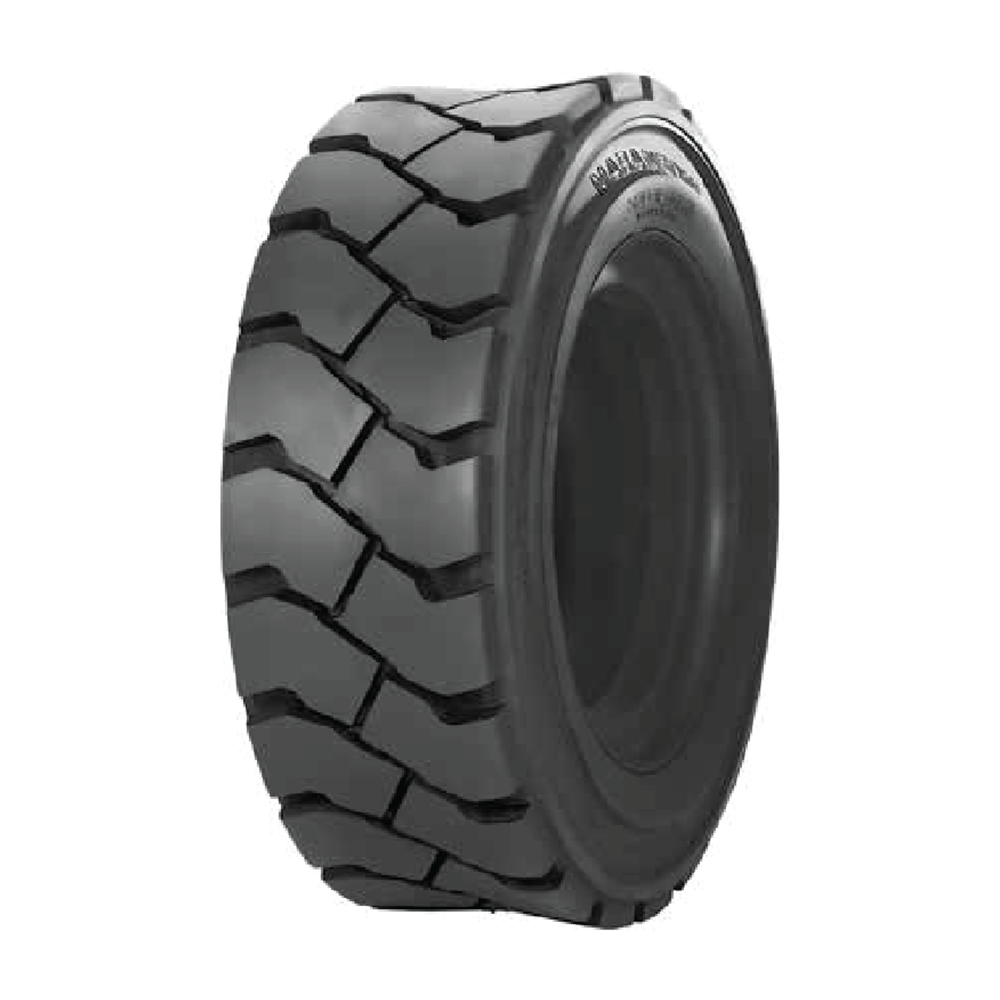

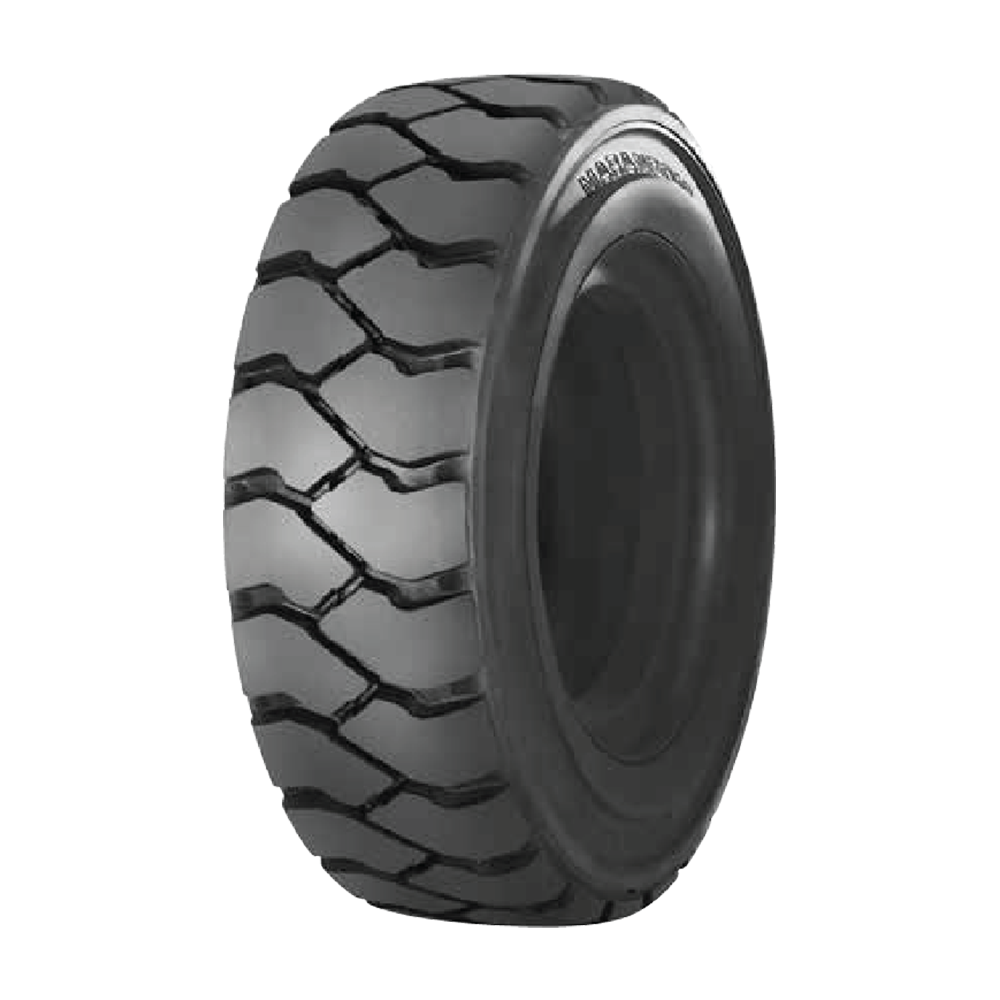

The conventional industrial tyres SW and LT are TT
(Tube Type ) models for which complete assembly of tube
and flap is recommended.
| CODE | TIRE SIZE | PROFILE | PR | TYRE | RIM WIDTH | INFLATION PRESSURE ETRTO(BAR) | OVERALL DIAMETER (MM)+-2% | OVERALL SECTION WIDTH(MM)+-2% | LOAD CAPACITY | WEIGHT | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8 Km/h | 16km/h | kg | pound | |||||||||
| 4.00-8 | WL | 6 | TT | 3.00D-8 | 4.25 | 420 | 110 | 600 | 900 | 4.5 | 9.9 | |
| 5.00-8 | SW | 8 | TT | 3.00D; 3.75L-8 | 8.25 | 485 | 150 | 950 | 1.435 | 8.10 | 17.82 | |
| 15X4.5-8 (125/75-8)* | LT | 12 | TT | 3.25L-8 | 10.00 | 385 | 122 | 750 | 1.130 | 4.20 | 9.24 | |
| 16X6-8 (150/75-8) | SW | 18 | TT | 4.33R-8 | 10.50 | 420 | 155 | 1.180 | 1.780 | 9.00 | 19.80 | |
| 18X7-8 (180/70-8) | SW | 16 | TT | 4.33R-8 | 10.00 | 465 | 175 | 1.650 | 2.490 | 12.30 | 27.06 | |
| 6.00-9 | SW | 14 | TT | 4.00E-09 | 10.50 | 540 | 170 | 1.495 | 2.260 | 13.00 | 28.60 | |
| 21X8-9(200/75-9) | SW | 16 | TT | 6.00E-09 | 10.00 | 530 | 215 | 2.120 | 3.200 | 21.20 | 46.64 | |
| 6.50-10 | SW | 14 | TT | 5.00; 5.50F-10 | 10.00 | 590 | 190 | 1.800 | 2.720 | 16.10 | 35.42 | |
| 23X9-10 (225/75-10) | SW | 20 | TT | 7.00F-10 | 10.00 | 585 | 230 | 2.650 | 4.000 | 23.30 | 51.26 | |
| 7.00-10 | SW | 16 | TT | 5.00S-12 | 10.00 | 675 | 200 | 2.240 | 3.380 | 22.30 | 49.06 | |
| 23X10-12 (250/60-12) | SW | 22 | TT | 8.00G-12 | 10.50 | 600 | 260 | 2.985 | 4.510 | 30.30 | 66.66 | |
| 27X10-12 (250/75-12) | SW | 20 | TT | 8.00G-12 | 10.00 | 695 | 270 | 3.550 | 5.360 | 33.60 | 73.92 | |
| 7.00-15 | SW | 16 | TT | 5.00; 5.50-15 | 10.00 | 740 | 205 | 2.725 | 4.115 | 24.50 | 53.90 | |
| 7.50-15 | SW | 16 | TT | 5.00; 6.00; 6.50-15 | 10.00 | 785 | 225 | 3.000 | 4.530 | 27.70 | 60.94 | |
| 28X9-15 (225/75-15) | SW | 16 | TT | 7.0-15 | 10.50 | 715 | 220 | 3.090 | 4.665 | 27.10 | 59.62 | |
| 32X12.1-15 | SW | 24 | TT | 9.75-15 | 10.30 | 810 | 325 | 4.835 | 7.300 | 64.70 | 142.34 | |
| 8.25-15 | SW | 18 | TT | 6.0; 6.5; 7.0-15 | 9.25 | 840 | 255 | 3.650 | 5.510 | 43.20 | 95.04 | |
| 250-15 (250/70-15) | SW | 20 | TT | 7.0; 7.5-15 | 10.00 | 735 | 245 | 3.875 | 5.850 | 36.40 | 80.08 | |
| 300-15 (315/70-15) | SW | 20 | TT | 8.0-15 | 9.00 | 820 | 280 | 5.000 | 7.550 | 56.50 | 124.30 | |
| 28X12 1/2-15 (355/45-15) | SW | 24 | TT | 9.75-15 | 10.50 | 710 | 305 | 3730 | 5630 | 45.40 | 99.88 | |
| 9.00-20 | LT | 14 | TT | 7.00-20 | 7.60 | 1.034 | 259 | 4.500 | 6.795 | 48.50 | 106.70 | |
| 10.00-20 | SW | 20 | TT | 7.0; 7.50; 8.0-20 | 10.00 | 1.070 | 290 | 5.320 | 8.035 | 103.50 | 227.70 | |
| 12.00-20 | SW | 20 | TT | 8.00; 8.50; 9.00-20 | 10.00 | 1.145 | 320 | 6.900 | 10.420 | 103.50 | 227.70 | |
