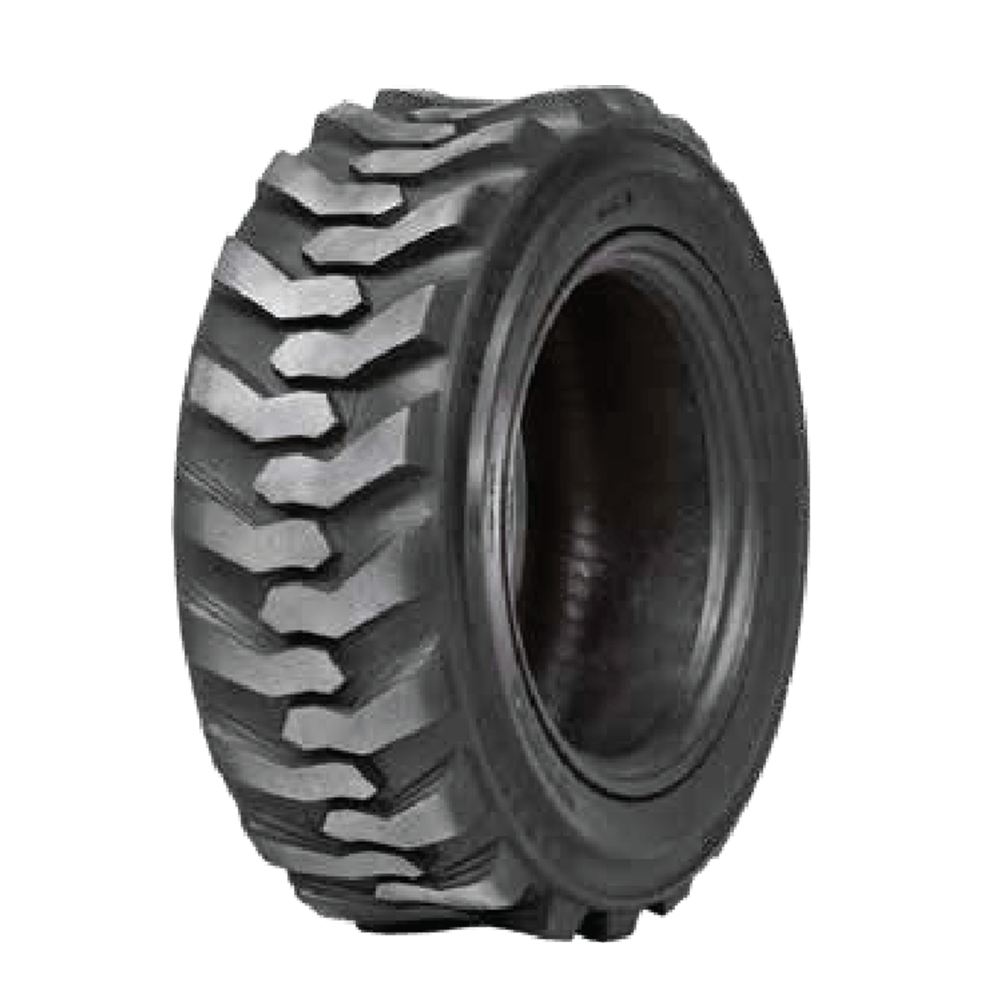

SS

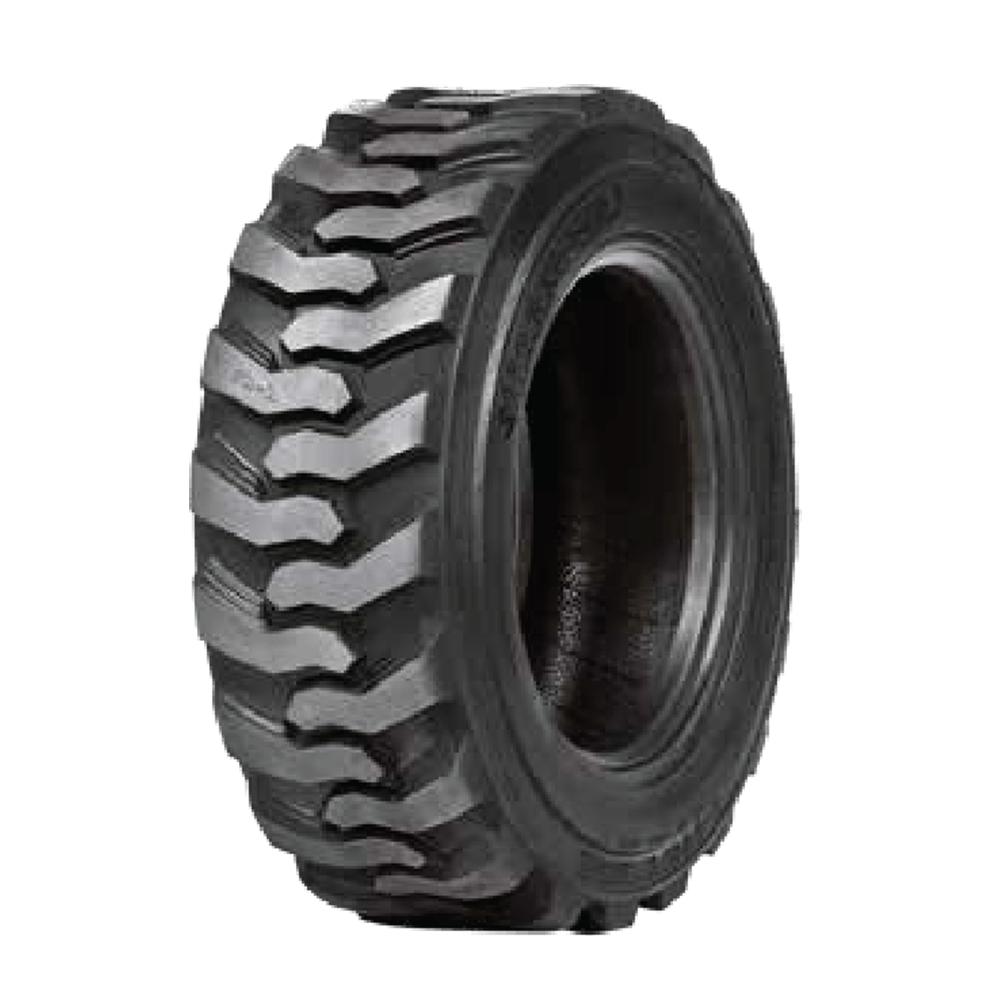

SD

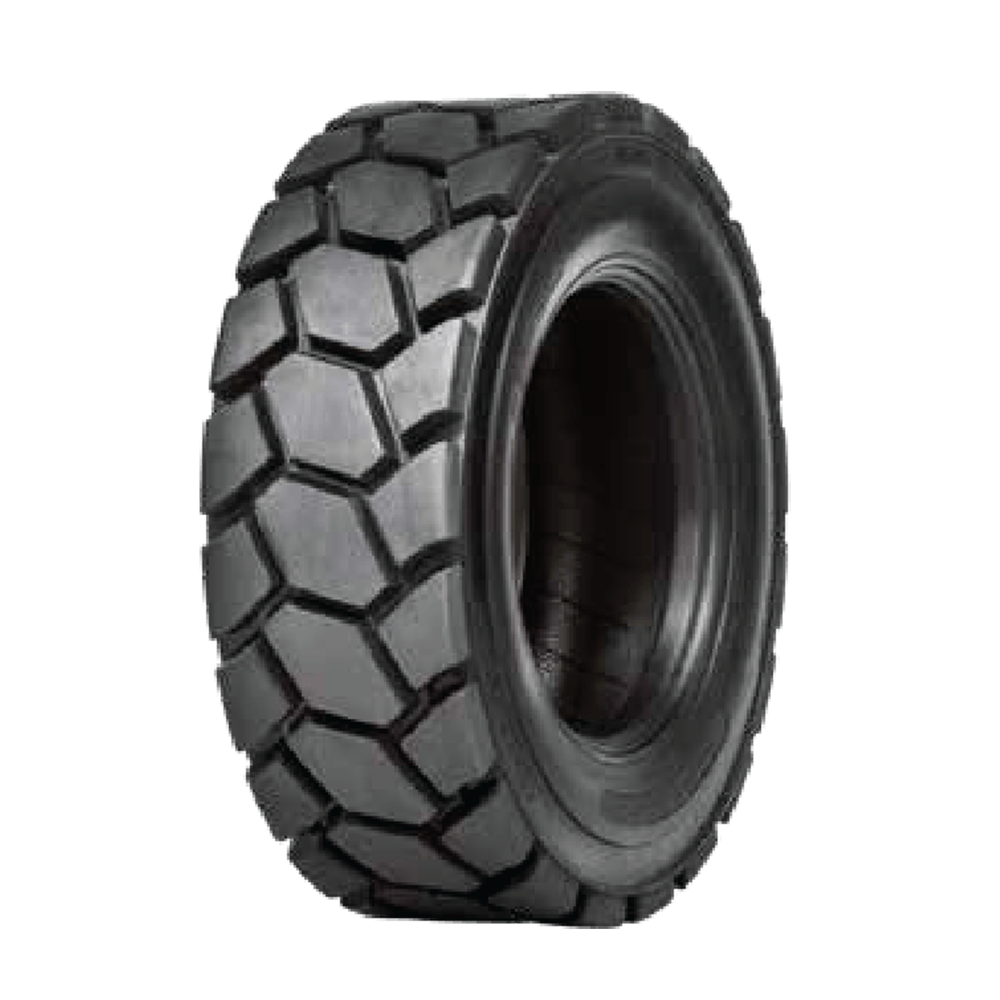

SKZ+
CODE | TIRE SIZE | PROFILE | PR | TYPE | RIM WIDTH | INFLATION PRESSURE ETRTO (bar) | OVERALL DIAMETER (mm) ± 2% | OVERALL SECTION WIDTH (mm) ± 2% | LOAD | CAPACITY (kg) | WEIGHT(kg) | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
8 km/h | Kg | Pound | ||||||||||
5.70 – 12 | SD | 6 | TL | 4.50 | 4.10 | 570 | 146 | 660 | 520 | 7.90 | 17.38 | |
23×8.50 – 12 | SS | 6 | TL | 7.0 | 3.40 | 575 | 215 | 820 | 650 | 12.70 | 27.94 | |
27×8.50 – 15 | SS | 8 | TL | 7.0 | 4.80 | 680 | 210 | 1.250 | 990 | 15.20 | 33.44 | |
27 x 10.50 – 15 | SS | 8 | TL | 8.50 | 3.50 | 700 | 260 | 1.280 | 1.010 | 18.10 | 39.82 | |
10×16.5 | SS | 10 | TL | 8.25 | 5.10 | 775 | 280 | 2.135 | 1.685 | 22.70 | 49.94 | |
10×16.5 | SKZ + | 10 | TL | 8.25 | 5.20 | 773 | 264 | 2.135 | 1.685 | 20.20 | 44.44 | |
12×16.5 | SS | 12 | TL | 9.75 | 5.60 | 845 | 330 | 2.890 | 2.285 | 36.60 | 80.52 | |
12×16.5 | SKZ + | 12 | TL | 9.75 | 5.50 | 831 | 307 | 2.890 | 2.285 | 40.20 | 88.44 |
